Architecture diagrams that move as fast as your thinking does

Built for developers and architects who think in systems, not drawing tools. You already have the mental model we just make it visible.

Get start nowSee demo video
FlowchartSequenceClassStateER DiagramGanttGit GraphMindmapTimelineJourneyPie ChartXY ChartSankeyBlockPacketQuadrantRequirementKanbanZenumlC4 ContextFlowchartSequenceClassStateER DiagramGanttGit GraphMindmapTimelineJourneyPie ChartXY ChartSankeyBlockPacketQuadrantRequirementKanbanZenumlC4 Context

Visualize complex system architectures with diagram-as-code, up and running instantly.

Diagrams generated

100+

Supported syntaxes

15+

Developer centric

Built to handle
complexity

Diagram as Code

Use Mermaid and ReactFlow natively

Real-time preview

See architecture changes instantly

Export anywhere

High-res PNG, SVG, and sharing links

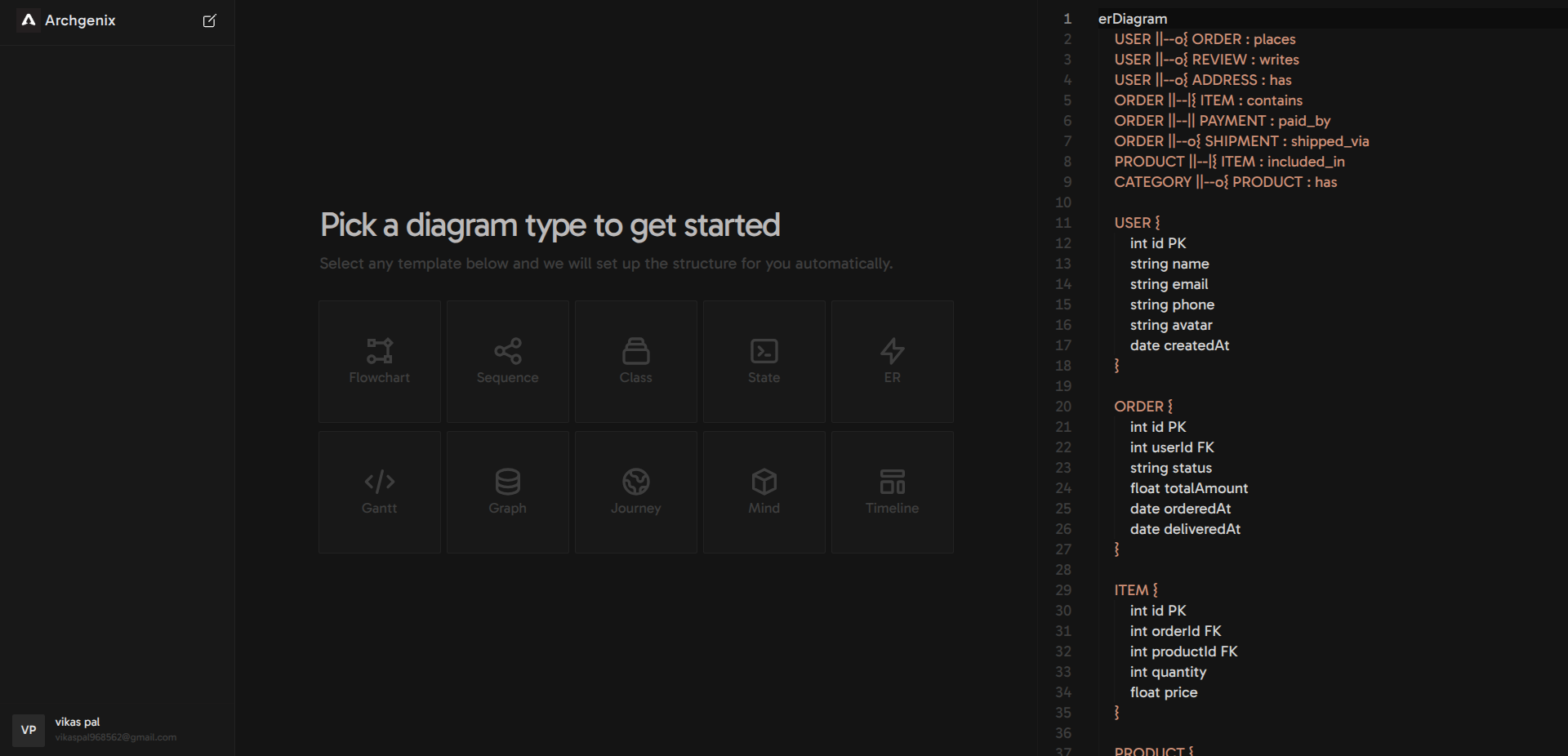

ArchGenix Dashboard interface showing diagram as code

Diagrams for every thought process.

Flowchart

Visualize workflows, processes, and algorithms step-by-step.

Sequence

Document system interactions and message flows over time.

Class

Map out object-oriented system structures and relationships.

State

Model the lifecycle and state transitions of your components.

ER Diagram

Design and visualize your database entities and their relationships.

Gantt

Track project schedules, dependencies, and timelines.

Git Graph

Visualize complex Git branching and commit histories.

Mindmap

Brainstorm and organize ideas hierarchically.

Timeline

Display a list of events in chronological order.

Journey

Map out user experiences and interactions with your product.

Pie Chart

Show proportions and percentages of a whole.

XY Chart

Plot data points on two axes to identify trends.

Sankey

Visualize flow quantities and distributions between nodes.

Block

Create high-level architecture overviews using blocks.

Packet

Visualize network packet structures and byte layouts.

Quadrant

Map items on a 2x2 matrix for strategic analysis.

Requirement

Document and trace system requirements and elements.

Kanban

Manage tasks and workflows visually with boards.

Zenuml

Write declarative sequences for fast diagram generation.

C4 Context

Visualize software architecture at different levels of abstraction.

Frequently Asked
Questions

Archgenix is a powerful, diagram-as-code platform built specifically for developers and architects. It allows you to create complex architecture diagrams instantly using code, rather than clunky manual drawing tools.

We support over 20 diagram types including Flowcharts, Sequence Diagrams, ER Diagrams, Git Graphs, and Mindmaps. Natively integrated with Mermaid and ReactFlow, we support more than 15 syntaxes for diverse use cases.

As you type your diagram code, Archgenix renders the visual architecture instantly in real time, so you can see exactly how your system maps out without switching contexts.

Yes! Every diagram you create can be exported in high-resolution PNG or SVG formats. You can also generate sharing links to easily collaborate with your team.

Not typically. By using declarative code syntaxes like Mermaid, Archgenix automatically handles the layout and routing of your diagrams so you can focus on system design rather than pixel-pushing.
